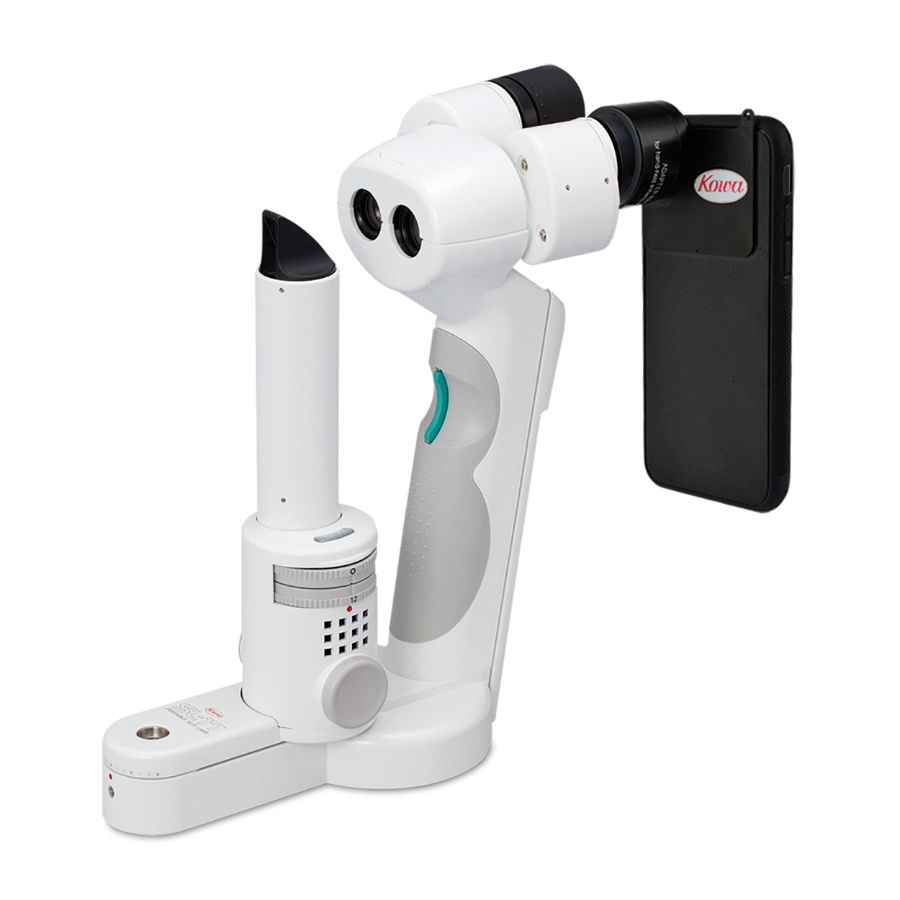

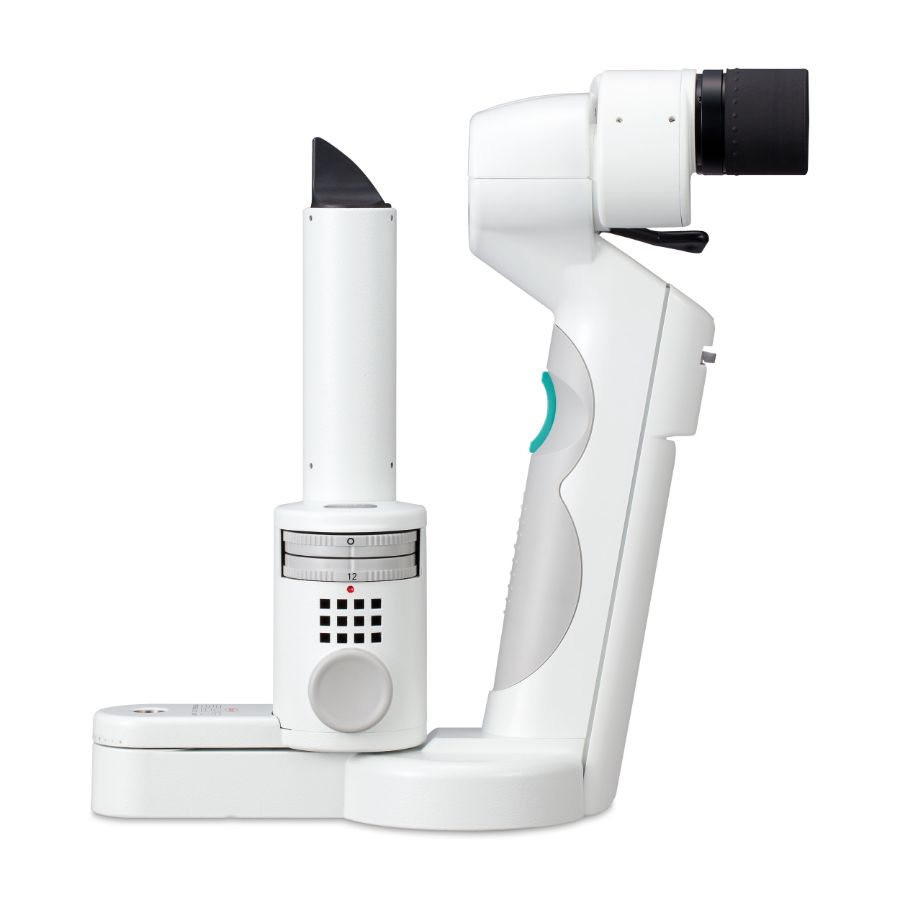

Kowa SL-17 Portable Slit Lamp

The Kowa SL-17 portable slit lamp provides optimum stereoscopic viewing with selectable magnifications and slit widths within a compact, lightweight unit. The non-slip ergonomic grip provides maximum operator comfort during lengthy examinations. Contact us regarding additional accessories (phone adaptors). One-Year Warranty.
Features and Technical Specs:
• Ergonomic and lightweight – only 790 g (incl. batteries)
• Continuously variable LED illumination from 10K to 20K lux
• Choice of 10x and 16x magnifications
• Slit widths: 0.1 mm, 0.2 mm, 0.8 mm and Ø 12 mm
• Spot illumination: Ø 1 mm, Ø 5 mm, Ø 12 mm
• 1 mm slit length for observing the anterior chamber flare
• Built-in cobalt blue filter
• Standard x4 AAA batteries for up to 280 minutes operation
• Interior angle: 13°
• Working distance: approx. 80 mm (at 16x magnification), approx. 100 mm (at 10x magnification)
• Field of view: Ø 10 mm (at 16x magnification), Ø 15 mm (at 10x magnification)
• Viewing distance: 50 to 72 mm
• Eyepiece dioptric adjustment: -8 to 5D
• Slit projection angle: horizontal: ±60°
• Dimensions (in cm): W 22 x D 9.5 x H 22.5
